PH302 – SEWER JET – 3000 PSI
PH302 - SEWER JET - 3000 PSI

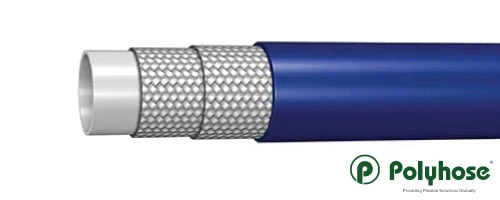

Construction
Inner tube
Thermoplastic Elastomer
Reinforcement
One or more Braids of Synthetic Fiber
Cover
Polyurethane, Blue Colour
Application
Standard Sewer cleaning vehicles and cleaning equipments. Heavy duty construction for optimum cut and wear resistance with bonded tube and cover. Available in long lengths with a special cover, resistant to microbiological degradation light weight compared to conventional rubber alternatives and increased lifetime
Note: Special colours available on request
| Item Code | Dash Size | DN |  ID |  OD |  WP |  BP |  BR/r |  W |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | bar | psi | bar | inch | mm | g/m | |||
| PH302-02 | -02 | 03 | 1/8 | 3.2 | 0.335 | 8.5 | 3000 | 210 | 7500 | 525 | 1.2 | 30 | 57 |
| PH302-03 | -03 | 05 | 3/16 | 4.8 | 0.413 | 10.5 | 3000 | 210 | 7500 | 525 | 1.4 | 35 | 83 |
| PH302-04 | -04 | 06 | 1/4 | 6.4 | 0.505 | 12.8 | 3000 | 210 | 7500 | 525 | 1.6 | 40 | 117 |
| PH302-06 | -06 | 10 | 3/8 | 9.5 | 0.640 | 16.3 | 3000 | 210 | 7500 | 525 | 3.0 | 75 | 170 |
| PH302-08 | -08 | 12 | 1/2 | 12.7 | 0.880 | 22.4 | 3000 | 210 | 7500 | 525 | 4.0 | 100 | 318 |
| PH302-10 | -10 | 16 | 5/8 | 16.0 | 1.030 | 26.2 | 3000 | 210 | 7500 | 525 | 4.3 | 110 | 430 |
| PH302-12 | -12 | 20 | 3/4 | 19.0 | 1.150 | 29.2 | 3000 | 210 | 7500 | 525 | 4.9 | 125 | 496 |
| PH302-16 | -16 | 25 | 1 | 25.4 | 1.470 | 37.3 | 3000 | 210 | 7500 | 525 | 6.3 | 160 | 759 |
| PH302-20 | -20 | 32 | 1.1/4 | 31.8 | 1.830 | 46.5 | 3000 | 210 | 7500 | 525 | 9.8 | 250 | 1159 |
Temperature Range :
Continuous: -40°C to +60°C
