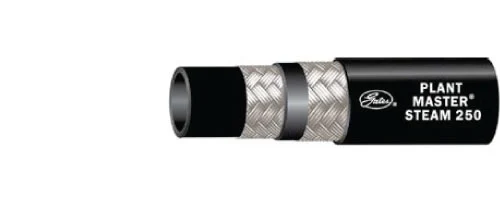

PLANT MASTER STEAM 250
PLANT MASTER STEAM 250
Recommended For:
Heavy duty industrial uses including heat control, melting of substance such as wax and glue, thawing. cleaning and steam transfer applications. It will handle all types steam saturated and superheated up to 185 psi and +232 oC. Note: Do not alternate change between steam and water.
Tube:
EPDM, Black
Reinforcement:
Two braids of high tensile brass coated steel wire.
Cover:
EPDM, black. All sizes are perforated.
Temp. Range:
-40°C to +232°C
Standard:
Exceeds IS: 10655 Type 3 & BS: 5342 Type 2
| PRODUCT DESCRIPTION | PRODUCT NO. |  |  |  |  |  |  | METER ROLL | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (mm) | (psi) | (Bar) | (psi) | (Bar) | (in) | (mm) | (in HG) | |||
| 12 PLANT MASTER STEAM 250 | 36050852 | 3/4 " | 19.1 | 32.3 | 250 | 17.2 | 2500 | 172 | 229 | 9 | 20 | - |
| 16 PLANT MASTER STEAM 250 | 36050853 | 1 " | 25.4 | 38.5 | 250 | 17.2 | 2500 | 172 | 279 | 11 | 20 | - |
| 20 PLANT MASTER STEAM 250 | 36050855 | 1 1/4 " | 31.8 | 46 | 250 | 17.2 | 2500 | 172 | 406 | 16 | 20 | - |
| 24 PLANT MASTER STEAM 250 | 36050856 | 1 1/2 " | 38.1 | 54.3 | 250 | 17.2 | 2500 | 172 | 508 | 20 | 10 | - |
| 32 PLANT MASTER STEAM 250 | 36050857 | 2 " | 50.8 | 67.5 | 250 | 17.2 | 2500 | 172 | 635 | 25 | 10 | - |
