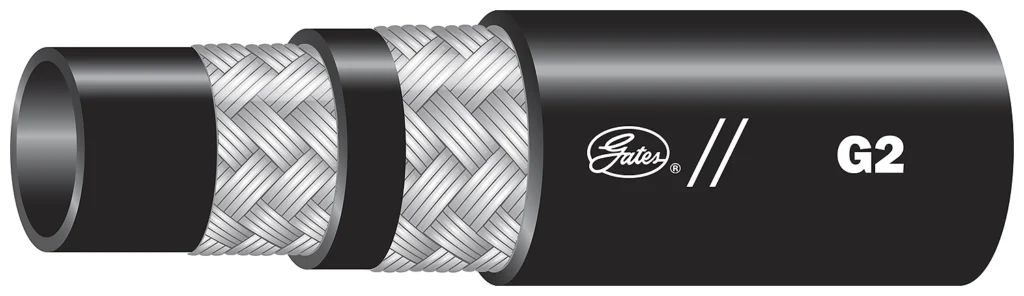

G2 2-WIRE BRAID HOSE – SAE 1OOR2 TYPE AT/EN 853 2SN
G2 2-WIRE BRAID HOSE – SAE 1OOR2 TYPE AT/EN 853 2SN
Recommended For:
High–pressure hydraulic oil lines. Meets or exceeds the requirements of SAE 100R2, ISO 1436 2SN R2 and EN 853 2SN.
Tube:
Black, oil resistant, synthetic rubber (Nitrile).
Reinforcement:
Two braids of high tensile steel wire.
Cover:
Black, oil and abrasion resistant, synthetic rubber (Nitrile and PVC).
Temp. Range:
-40°C to +100°C
Coupling:
MegaCrimp (-20), GSP thru (-24 & -32)
MEETS FLAME RESISTANCE ACCEPTANCE DESIGNATION “MSHA 2G”
| PRODUCT DESCRIPTION | PRODUCT NO. |  |  |  |  |  |  | TEMPERATURE RANGE | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (mm) | (psi) | (Bar) | (psi) | (Bar) | (in) | (mm) | (in HG) | |||
| 3 G2 | 46578750 | 0.19 | 5.1 | 13.2 | 6025 | 414 | 24000 | 1655 | 3.5 | 88.9 | - | -40°C to +100°C |
| 20 G2 | 46574900 | 1.25 | 31.8 | 47.5 | 1825 | 126 | 7300 | 504 | 16.5 | 419.1 | - | -40°C to +100°C |
| 24 G2 | 46574894 | 1.50 | 38.1 | 53.6 | 1300 | 90 | 5200 | 360 | 20.0 | 508.0 | - | -40°C to +100°C |
| 32 G2 | 46574895 | 2.00 | 50.8 | 66.5 | 1175 | 81 | 4700 | 324 | 25.0 | 635.0 | - | -40°C to +100°C |
| 40 G2 | 46547970* | 2.50 | 63.5 | 82.3 | 1000 | 69 | 4000 | 280 | 30.0 | 762.0 | - | -40°C to +100°C |
| 48 G2 | 46547727* | 3.00 | 76.2 | 96.5 | 625 | 43 | 2500 | 172 | 33.0 | 838.0 | - | -40°C to +100°C |
