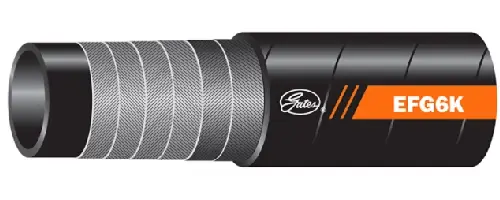

EFG6K MEGASYS SPIRAL WIRE HOSE – SAE 1OOR15
EFG6K MEGASYS SPIRAL WIRE HOSE – SAE 1OOR15
Recommended For:
Extremely high pressure, high-impulse action such as hydrostatic transmissions, EFG6K is designed to meet all requirements of SAE 100R15 specificationsand performance requirements of EN 856 4SP (-6, -8, -10 and -12) and EN856 4SH (-12, -16 and -20) and ISO 3862 Type R15 (-6, -8, -10, -12, -16, -24) Compatible with biodegradable hydraulic based fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum based fluids. Superior impulse performance: tested to 1,000,000 impulse cycleswith Gates couplings.
Tube:
Black, oil resistant synthetic rubber [Nitrile].
Reinforcement:
Four [Six for (-20, -24, -32)] alternating layers of spiraled, high tensile steel wire
Cover:
Black, oil resistant, synthetic rubber [Polychloroprene] with color coded layline.
Temp. Range:
-40°C to +121°C
Coupling:
GS (Thru-6to -20) & GSM (Thru -24 &-32)
MEETS FLAME RESISTANCE ACCEPTANCE DESIGNATION “MSHA 2G”
| PRODUCT DESCRIPTION | PRODUCT NO. |  |  |  |  |  |  | TEMPERATURE RANGE | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (mm) | (psi) | (Bar) | (psi) | (Bar) | (in) | (mm) | (in HG) | |||
| 6 EFG6K | 46511396* | 0.38 | 9.5 | 20.3 | 6000 | 420 | 24000 | 1680 | 2.5 | 63.5 | - | -40°C to +121°C |
| 8 EFG6K | 46511680 | 0.5 | 12.7 | 24.1 | 6000 | 420 | 24000 | 1680 | 3.5 | 88.9 | - | -40°C to +121°C |
| 10 EFG6K | 46511672 | 0.63 | 15.9 | 27.6 | 6000 | 420 | 24000 | 1680 | 4 | 101.6 | - | -40°C to +121°C |
| 12 EFG6K | 46514909 | 0.75 | 19.1 | 31.4 | 6000 | 420 | 24000 | 1680 | 4.8 | 120.7 | - | -40°C to +121°C |
| 16 EFG6K | 46514910 | 1 | 25.4 | 38.7 | 6000 | 420 | 24000 | 1680 | 6 | 152.4 | - | -40°C to +121°C |
| 20 EFG6K | 46511400* | 1.25 | 31.8 | 50 | 6000 | 420 | 24000 | 1680 | 8.2 | 208.3 | - | -40°C to +121°C |
| 24 EFG6K | 46511572* | 1.5 | 38.1 | 57.4 | 6000 | 420 | 24000 | 1680 | 10 | 254 | - | -40°C to +121°C |
